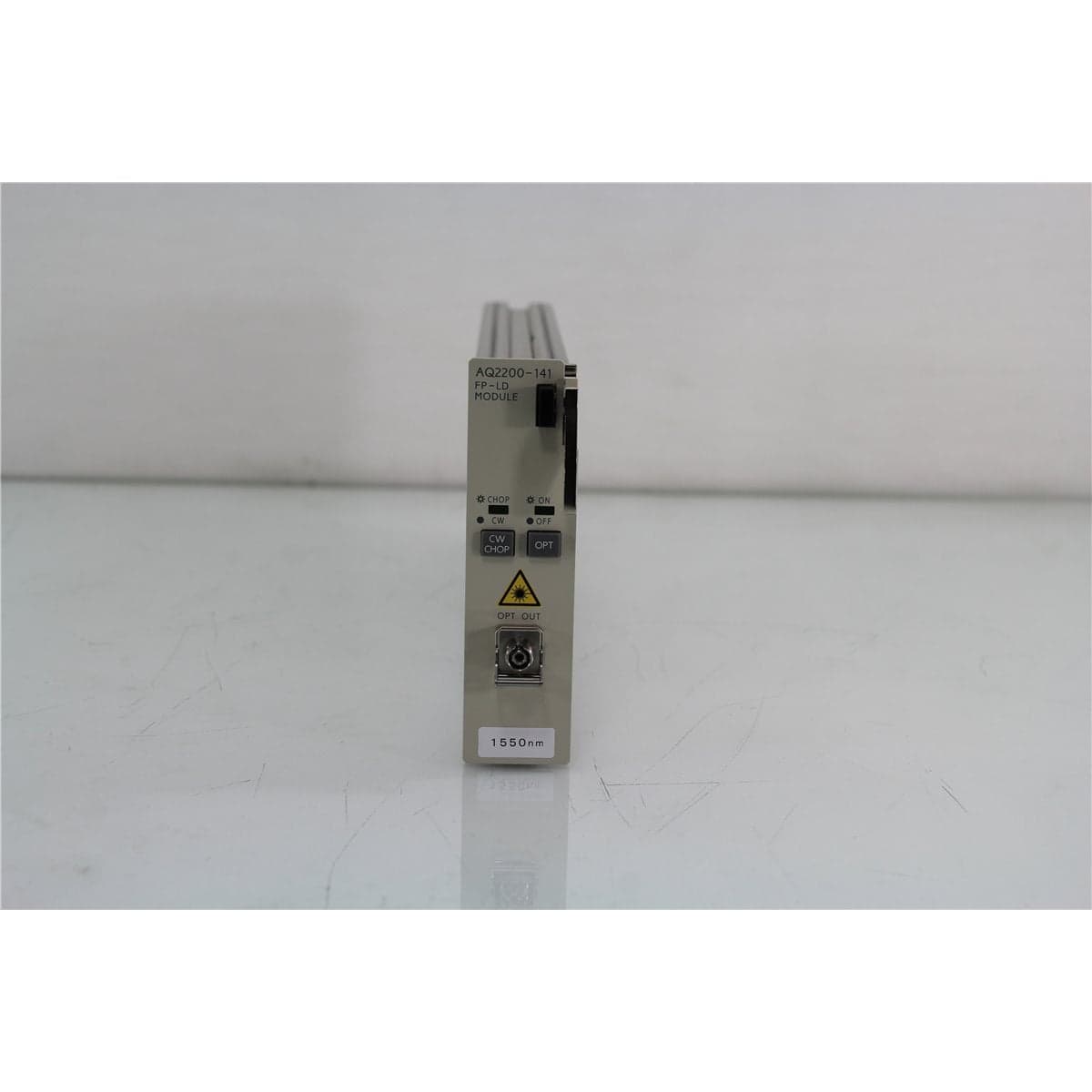

Yokogawa AQ200-141 1550nm FP, FC/PC

All our inventory is accurate and updated in real-time. If this website says we have the item in stock, we do.

Item : AQ2200-141

Calibration type : Premium Calibration included.

• Calibration to OEM specification
• Calibration Certificate
• Calibration Label
• Calibration Data

Specifications at a glance :

• Center wavelength 1550 ±20 nm
• Spectral width : 10 nm or less (when 1550 nm is selected)
• Optical output level : +0 dBm or higher
• Output level stabillity Temperature stabillity : 0.2 dBp-p or less (5 to 40°C, 8 hours)
• Time stabillity :
  • ±0.003 dBp-p or less (15 minutes)
  • ±0.03 dBp-p or less (24 hours)
• Optical attenuation width : 0 to 6 dB (steps of 0.01 dB)
• Internal modulation frequency : 270 Hz, 1 kHz, 2kHz
• Applicable fiber SM (ITU-T G.652)
• Optical connector AQ9441(FC) universal adapter

Payment : All orders are prepaid. We accept wire transfers or Paypal. For orders above 3000 USD with Paypal, administrative fees will be added.

Warranty : 30 days warranty.

Shipping : Worldwide shipping. Contact us for a shipping quote.

Shipping terms : EXW. Buyer is responsible for any duties or taxes.
We can also ship on your preferred carrier account.

Warranty fine print : Note that this is not a Right of Return.  We will only accept a return if the unit is defective within the warranty period.  Return shipping is at your cost and prepaid. Warranty shall become null and void should it be determined that the equipment was subjected to undue abuse, involved in any mishap, incorrectly wired and/or used/maintained in a manner contrary to the manufacturer's published instructions. Warranty period starts upon reception of the item at the delivery place.
