JDS · HA9-Z035

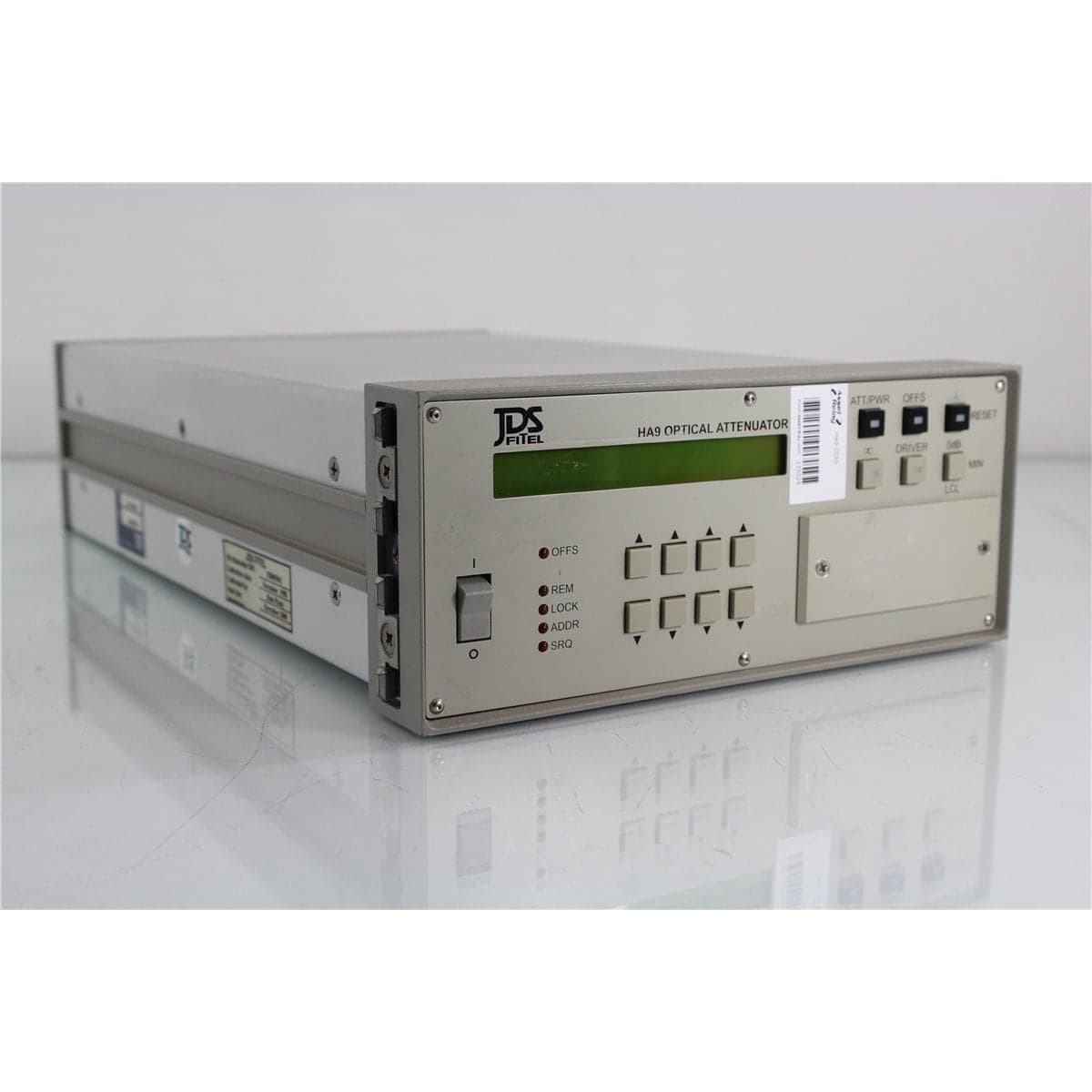

JDS Fitel JDSU HA9-Z035 Singlemode Optical Attenuator SM 9/125 micrometer
$4,619.20
Price in USD.
- Condition
- Used
- Availability
- In stock · 2 available
- Model
- HA9-Z035
- Manufacturer
- JDS
- Category
- Optical Attenuators 62.5-125
Description
JDS HA9+Z035 Singlemode 9/125 µm Benchtop Programmable Optical Attenuator
Specifications of HA9+Z035
- Wavelength range: 1200 to 1700 nm
- Attenuation range: > 100 dB
- Attenuation change rate: < 2.5 sec
- Insertion loss without connectors: 1.2 dB typical, 1.5 dB maximum
- Return loss: > 45 dB
- Maximum input power: 200 mW
- Input voltage: 100 to 240 V, 50 to 60 Hz
- Configuration of HA9+Z034
- Fiber type (2): 9/125 µm
- Built-in options (0): none
- Return loss (K): Standard
- Connector type (FP): SC/APC
- Port type (1):Pigtails on back
