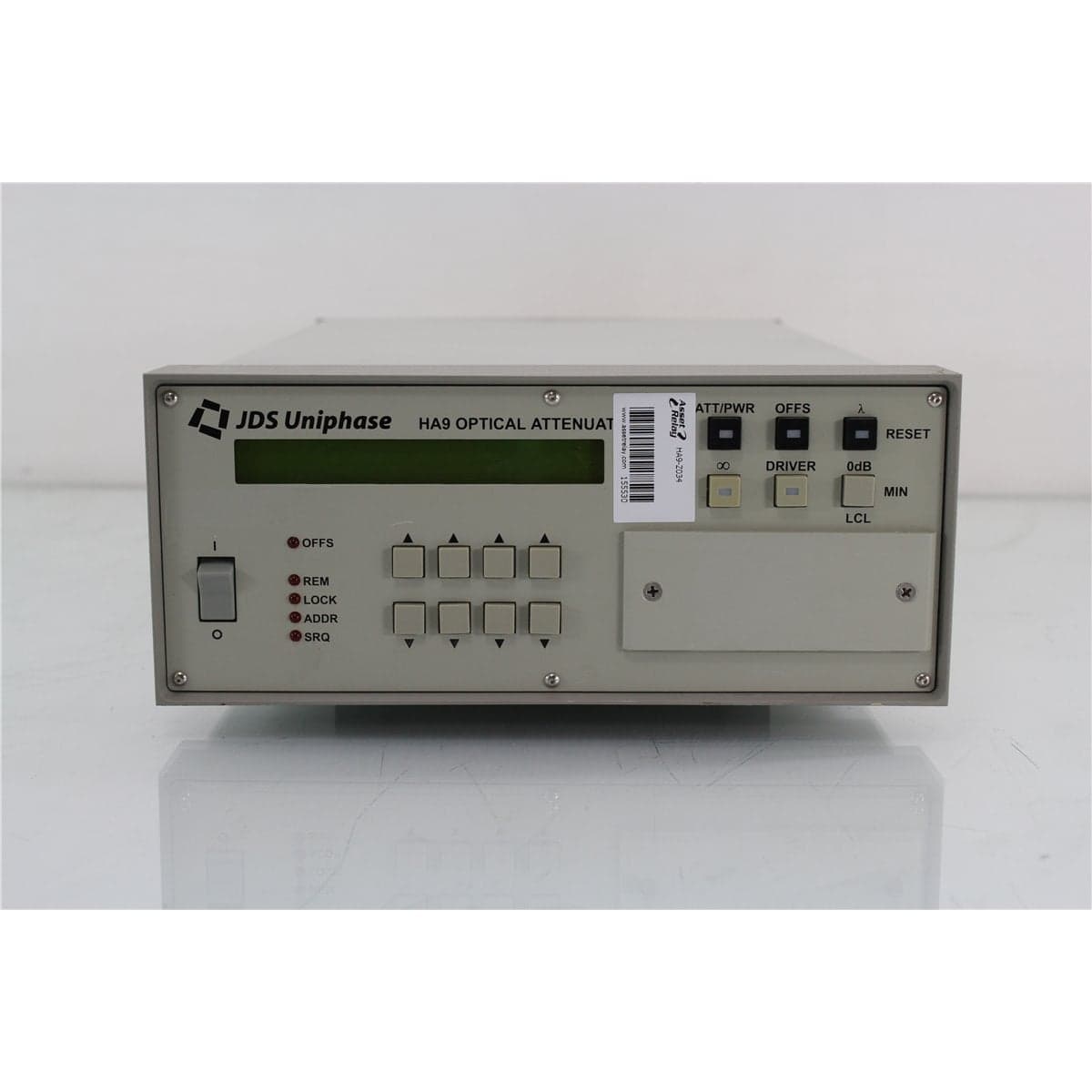

JDS Fitel JDSU HA9-Z034 Attenuator MM 62.5/125

JDS HA9+Z034 Multimode 62.5/125 µm Benchtop Programmable Optical Attenuator

Specifications of HA9+Z034

• Wavelength range: 750 to 1700 nm
• Attenuation range: > 60 dB
• Attenuation change rate: < 2.5 sec
• Insertion loss without connectors: 3.9 dB
• Return loss: > 30 dB
• Maximum input power: 200 mW
• Input voltage: 100 to 240 V, 50 to 60 Hz
• Configuration of HA9+Z034
• Fiber type (2): 62.5/125 µm
• Wavelenght range (C): 750-1700 nm
• Built-in options (0): none
• Return loss (K): Standard
• Connector type (FP): SC/PC
• Port type (1): Pigtails on front
