JDS Fitel HA9108-SPL2 HA9W 62.5/125 Multimode Optical Attenuator with ST/PC Front Bulkheads

JDS Fitel HA9108-SPL2 HA9W 62.5/125 Multimode Optical Attenuator with ST/PC Front Bulkheads

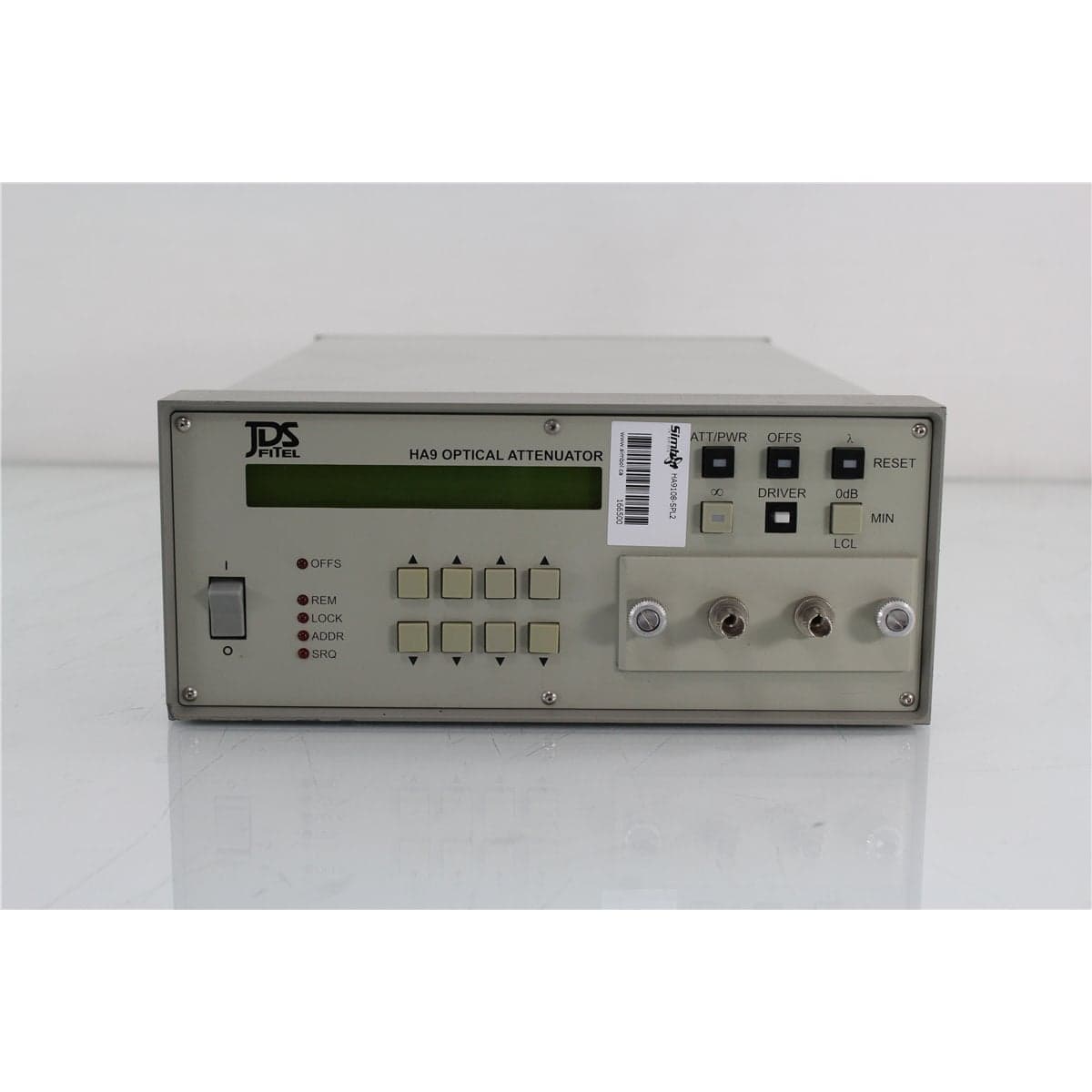

The JDS Fitel HA9108-SPL2 HA9W Optical Attenuator is a professional HA Series fiber optic attenuator configured for multimode optical test, laboratory, telecom, production, and photonics applications. This product description applies specifically to the HA9108-SPL2 configuration and uses only the configuration details identified for this exact device.

The HA9108-SPL2 configuration uses 62.5/125 multimode fiber, no built-in option, the HA9W wide wavelength range model covering 750 nm to 1700 nm, ST/PC connector configuration, low backreflection, and front-panel bulkheads. These configuration details are important for buyers replacing an existing attenuator or matching a specific optical test setup where fiber type, wavelength range, connector style, port layout, and backreflection option must be correct.

Features and Benefits of the JDS Fitel HA9108-SPL2 HA9W Optical Attenuator

The JDS Fitel HA9108-SPL2 HA9W Optical Attenuator provides practical value for professional users who require a clearly defined multimode optical attenuation configuration for fiber optic measurement and test workflows.

• HA9W wide wavelength model: Uses the HA9W model configuration, identified for 750 nm to 1700 nm optical attenuation applications.
• 62.5/125 multimode fiber: Configured for 62.5/125 multimode fiber optic test and measurement environments.
• ST/PC connector configuration: Uses ST/PC connectors for compatible multimode optical patching and test setups.
• Front-panel bulkheads: Uses the front-panel bulkhead port configuration for convenient direct access to the optical connections.
• No built-in option: This HA9108-SPL2 configuration does not include a built-in splitter, coupler, or 1:2 switch option.
• Low backreflection configuration: Uses the low backreflection option for the configured HA9W attenuator.
• Professional attenuation control: Suitable for controlling multimode optical signal levels in laboratory, production, telecom, and photonics test environments.

Advanced Features and Practical Applications

The JDS Fitel HA9108-SPL2 is intended for optical test environments where controlled multimode attenuation is required across the 750 nm to 1700 nm wavelength range. Optical attenuators are commonly used to reduce optical signal power to defined test levels during receiver sensitivity testing, optical link simulation, calibration procedures, system verification, and optical component characterization.

The HA9W model supports wide wavelength operation from 750 nm to 1700 nm. For this wide wavelength range, the attenuation range is 100 dB from 750 nm to 1500 nm and 60 dB from 1500 nm to 1700 nm. This makes the HA9108-SPL2 useful for multimode test applications where controlled attenuation is required across broad optical wavelengths.

The 62.5/125 multimode fiber configuration supports multimode optical workflows, while the ST/PC connector configuration provides a defined connection interface for compatible patch cables, optical sources, optical meters, receivers, and test equipment. The low backreflection option is intended for optical test setups where reflected power control is important, with the multimode low backreflection configuration identified for this fiber class.

The front-panel bulkhead configuration is practical for bench-top, rack-based, and laboratory optical test systems where direct access to the optical ports is useful. This front-panel layout can help simplify patching, troubleshooting, receiver testing, component characterization, and general optical power adjustment during everyday test workflows.

Because HA Series optical attenuators can be configured in multiple ways, this listing should be used only for HA9108-SPL2. Other HA Series model numbers may use different wavelength ranges, fiber types, built-in options, connectors, backreflection settings, or port layouts. Matching the exact configuration is important for maintaining compatibility with existing test procedures and optical setups.

Typical Applications

The JDS Fitel HA9108-SPL2 HA9W Optical Attenuator is suitable for professional applications such as:

• Multimode fiber optic attenuation control
• 62.5/125 multimode optical test setups
• Wide wavelength optical attenuation testing
• Telecom optical network testing
• Optical receiver sensitivity testing
• Laboratory optical power adjustment
• Photonics component characterization
• Optical link simulation
• Production and engineering test workflows
• Service, repair, and replacement equipment requirements

Product Overview

Brand	JDS Fitel / JDSU
Model	HA9108-SPL2
Base Model	HA9W
Product Category	Multimode Optical Attenuator
Fiber Type	62.5/125 multimode fiber
Connector Type	ST/PC
Primary Application	Controlled optical attenuation for multimode fiber optic test systems
Suitable For	Fiber optic laboratories, telecom test environments, photonics systems, optical component testing, production test workflows, and service environments



HA9108-SPL2 Configuration Details

Configuration Field	HA9108-SPL2 Setting
Product Family	HA Optical Attenuator
Fiber Type Code	1
Fiber Type	62.5/125 multimode fiber
Built-In Option Code	0
Built-In Option	None
Model Code	8
Model Range	750 nm to 1700 nm
Connector Type Code	SP
Connector Type	ST/PC
Backreflection Code	L
Backreflection Option	Low backreflection
Port Type Code	2
Port Type	Bulkheads front panel



HA9W 62.5/125 Multimode Specifications

Note: Optical specifications are measured at 23 °C with a laser source and do not include connectors, switch, or coupler if installed.

Specification	HA9108-SPL2 Details
Wavelength Range	750 nm to 1700 nm
Attenuation Range	100 dB from 750 nm to 1500 nm; 60 dB from 1500 nm to 1700 nm
Insertion Loss, 62.5/125 Multimode	=3.9 dB, NA = 0.3
Attenuation Accuracy, 750 nm to 1500 nm	±0.15 dB or ±0.015 dB/dB, whichever is greater
Attenuation Accuracy, Entire Range	±0.15 dB or ±0.015 dB/dB, whichever is greater
Attenuation Repeatability	±0.015 dB at constant temperature and wavelength
Backreflection, Low Option, 62.5/125 Multimode	Less than -35 dB, excluding connectors
Maximum Optical Input Power	300 mW for multimode fiber
Recalibration Period	Not required
Attenuation Settability at 1300 nm	0.01 dB
Polarization Sensitivity	<0.1 dB peak-to-peak across the attenuation range
Attenuation Change Rate	=2.5 seconds, 0 dB to 100 dB
ON/OFF Switch Attenuation	Greater than 110 dB
ON/OFF Switch Speed	Less than 20 ms



Environmental and Mechanical Specifications

Specification	Details
Operational Temperature Range	0 °C to 40 °C
Storage Temperature Range	-40 °C to +60 °C
Humidity Range	95% up to 40 °C, decreasing at 5% per °C from 40 °C to 60 °C
Dimensions	35.5 cm x 21.2 cm x 8.9 cm
Weight	3.75 kg



Optical Attenuator Applications

The JDS Fitel HA9108-SPL2 HA9W Optical Attenuator can be used in professional multimode optical test environments where controlled signal attenuation is required across the 750 nm to 1700 nm wavelength range. This type of attenuator is commonly used to set optical power levels, simulate fiber link loss, support receiver sensitivity testing, and help characterize optical components under repeatable test conditions.

With its 62.5/125 multimode fiber configuration, HA9W 750 nm to 1700 nm wavelength range, ST/PC connector configuration, low backreflection option, and front-panel bulkhead layout, this configuration is intended for users who need the exact HA9108-SPL2 setup. The front bulkhead arrangement can be useful in bench-top or rack-based systems where direct access to the optical ports is preferred.

The ST/PC connector interface should be matched to compatible ST/PC patch cords and mating adapters. Proper connector cleaning and inspection are important before connection because contaminated fiber interfaces can affect attenuation accuracy, insertion loss, backreflection performance, and repeatability in optical measurement systems.

Buyer Considerations

The JDS Fitel HA9108-SPL2 is a configuration-specific optical attenuator. Buyers should confirm that the HA9W 750 nm to 1700 nm model range, 62.5/125 multimode fiber type, ST/PC connector configuration, low backreflection option, no built-in option, and front-panel bulkhead port layout match the intended optical test setup before purchase.

Buyers should also review the product condition, included accessories, connector condition, calibration or service notes, and any installed options before purchase. If the attenuator is being integrated into an existing rack, bench, or automated test station, the port layout and connector style should be confirmed against the current cabling and instrument configuration.

This description applies only to the HA9108-SPL2 configuration. It should not be used for other HA Series attenuators with different model numbers, fiber types, wavelength ranges, connector types, port arrangements, backreflection options, or built-in options.
